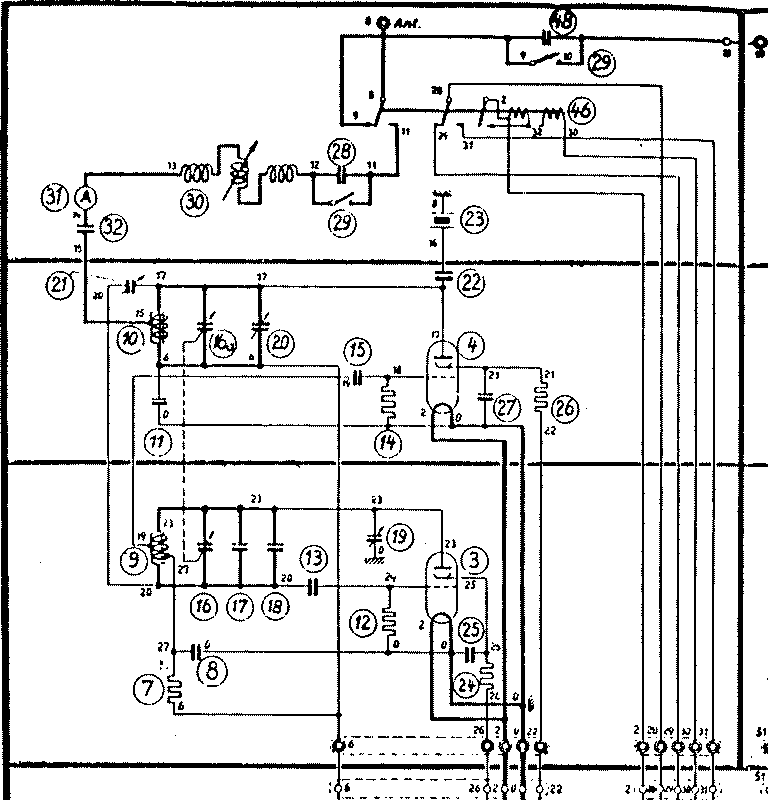

Transmitter details, including relay (fast operate-slow fall)

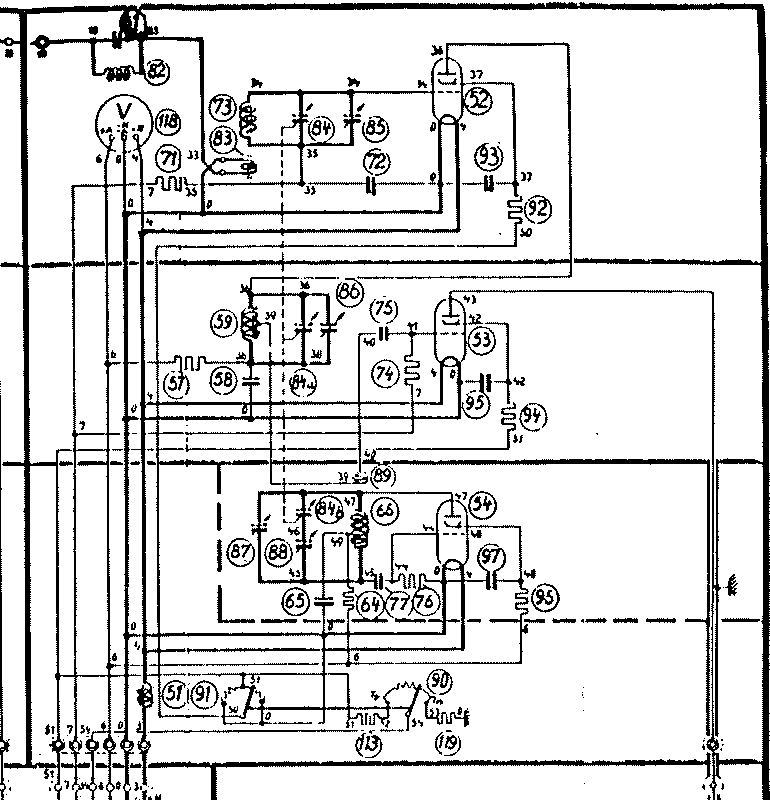

Receiver detail, IF and audio

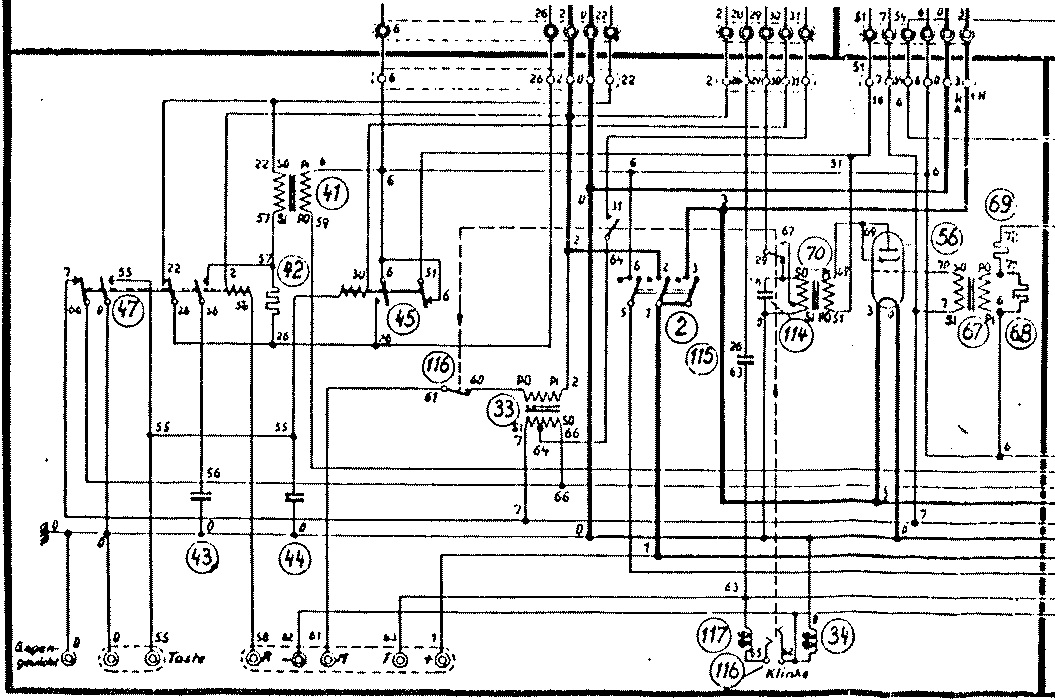

Relay details

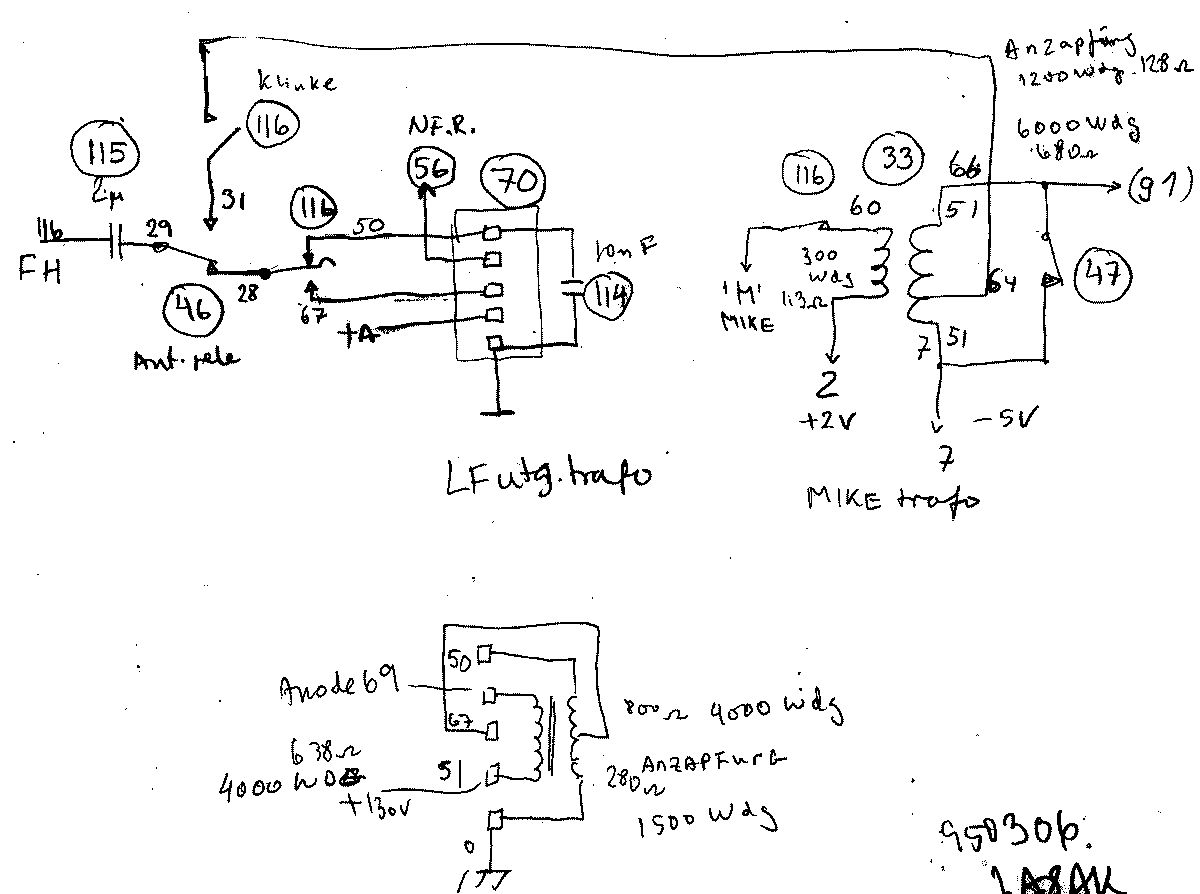

audio transformer details

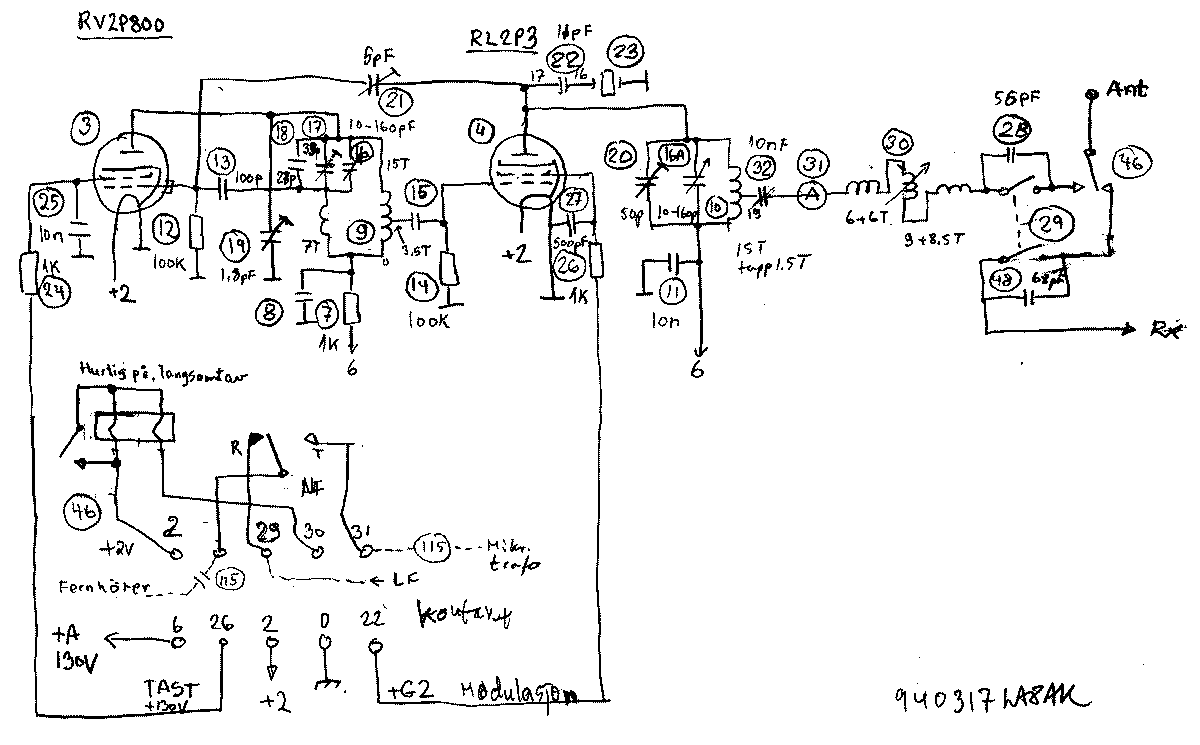

transmitter mounting circuit

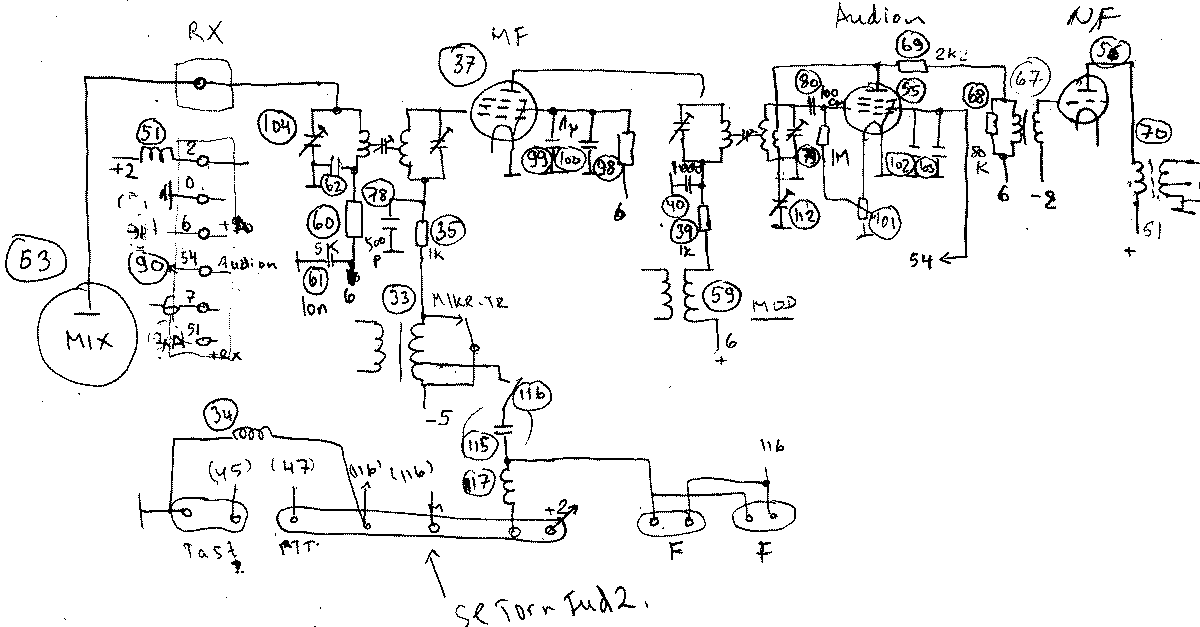

receiver mounting details

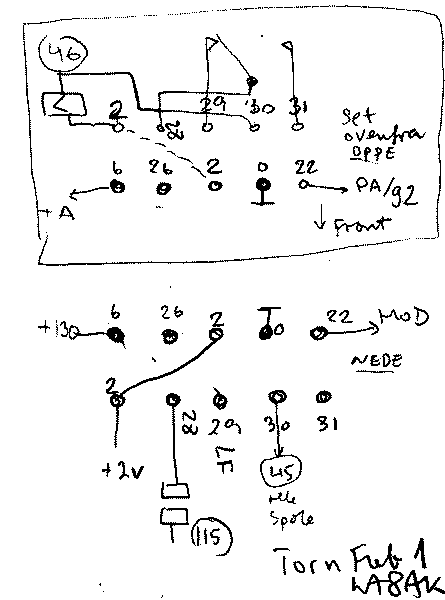

audio stage mounting details
IF amplifier and detector
LA8AK
25e) Torn.Fu.b1,
f + c
Further circuit details
Transmitter details, including relay (fast operate-slow fall)

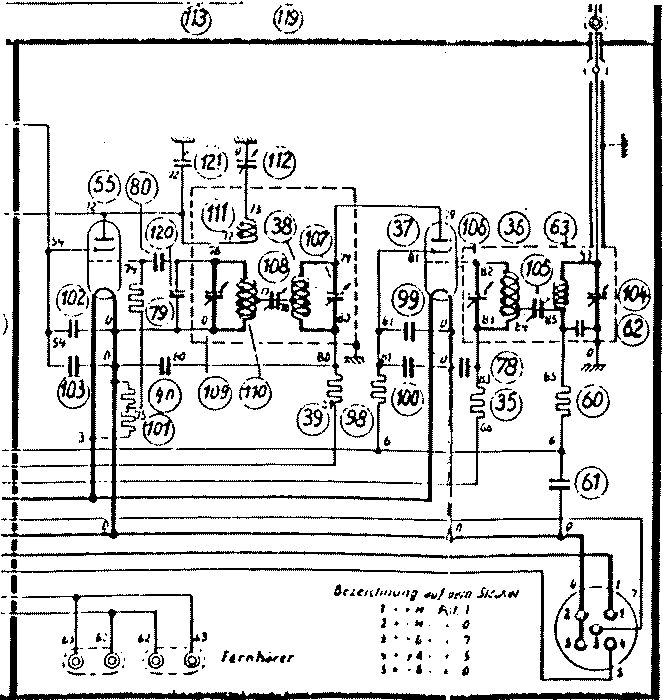

Receiver detail, IF and audio
Relay details
audio transformer details
transmitter mounting circuit
receiver mounting details
audio stage mounting details
IF amplifier and detector
