LA6LCA high level 2m ssb receiver (IP3=40dBm)

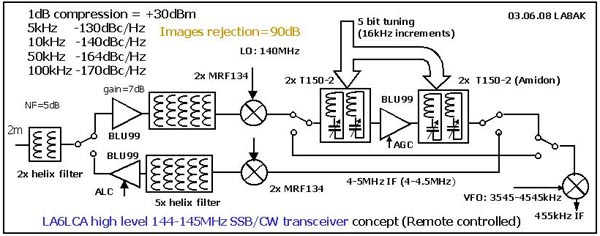

Have been curious about the unusual 2m project by LA6LCA.
He uses very sharp front-end selectivity and it is possible to use 4-5MHz IF.
This was designed for earlier 2m bandplan, but the beacons
are now moved below 144.5 and we need not to cover more than 500kHz, so
the tuned 1st IF bandpassfilter requirement and tracking problems would be easier to solve.
The idea was created when he got at high level 70MHz xtal filter, he uses a Philips BLU99 doubler to 140MHz.
The 2nd mixer is SAY1 type with +24dBm VFO drive level..
If you can't make a local oscillator with 180dBC/Hz purity at 1MHz distance - and it is quite flat towards the carrier frequency,
it is no point in using this concept.

You'll find data for BLU99 at http://www.semiconductors.philips.com/pip/BLU99_99-SL_CNV_2.html


Will try to update information as soon as possible

Believe the reason for building this high level transceiver was some local problem with other local amateurs who used mediocre rigs,
claiming that LA6LCA was the person causing trouble, so he wanted to build a rig with documented specifications - far batter than any
of the mediocre rigs found in the neighbourhood - so it should be no reason for complaining about his bad equipment. For further improvement
he uses remote control and gain some more distance to the complaining parts
. He also built a portable 2x 4CX250B power amplifier with
ALC to compare the RF input envelope with the output and correct the envelope to improve IMD.


Next version of transceiver is supposed to use 1.4MHz IF xtal filter instead of 455kHz. He is also building a receiver using 4-gang tuning capacitor
from an American WWII surplus receiver




2m RX pre-amp using MRF134. The device needs 100-150mA for low noise figure, maximum voltage +28V. Suggest to use a constant current circuit as shown, but only a simple circuit is shown, some optimization of input impedances is neccessary for optimum noise factor (LA6LCA).


Just wonder if the Zwischenbasis-amplifier would be an improvement at some of the stages where LA6LCA uses BLU99 or MRF134,
see http://www.agder.net/la8ak/c19.htm


more comments are shown on page d14
