h-4) Tandberg Huldra 4

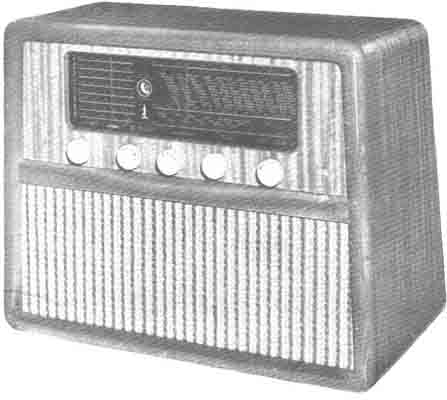

The receiver seen from the front

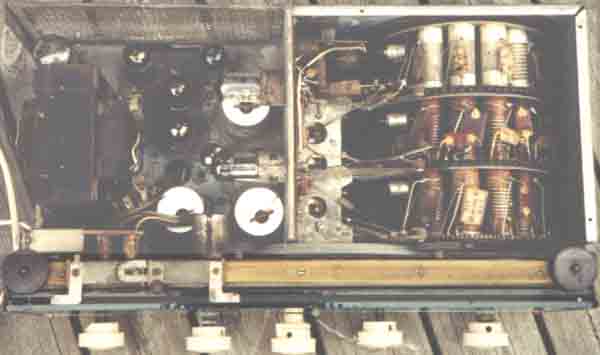

Chassis picture of the BC receiver



Functional circuit for the RF part

It covers the following bands:
LW: .....150...... 370kHz
MW: ....500....1600kHz
Fisher: 1600....4500kHz
SW1: 5,9....... 6,23 (6,6) MHz
SW2: 6,9.......7,45 (8,2) MHz
SW3: 9,4.......9,90 (10,5) MHz
SW4: 11,6...12,12 (12,7) MHz
SW5: 15,0...15,57 (16,2) MHz
SW6: 17,5...18,05 (18,6) MHz
SW7: 20,8 ..22,10 (23,3) MHz
SW8: 25,4 ..26,80 (30,3) MHz

Upper limit is shown in paranthesis, but is not calibrated/marked on the scale.

Supply voltage: 110, 130, 150, 200, 230V 50Hz AC, 75W

more details

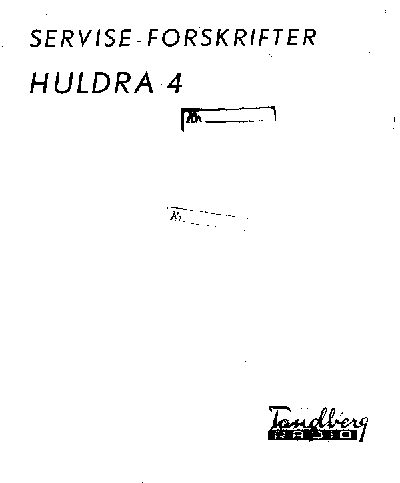

Service manual (17 pages A4)
