f22. Components and
Accessories
piezo-electric
crystals and light emitting crystal

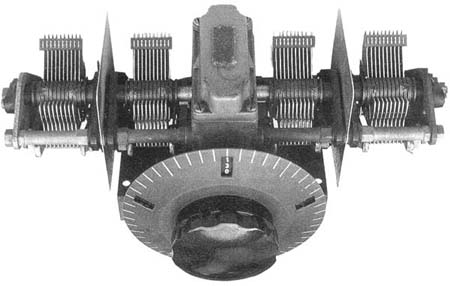

Körting KST tuning capacitor and drive (PA0SE)
see page-62 for more details of the HRO receiver
11c List of equipment and valves
f21
surplus components
Mains adapters
These are standard types in Norway, they
are old types but hasn't been difficult to find in hardware
shops.

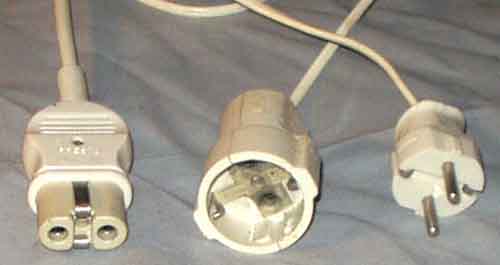

Type 1 (left) is the so-called electric iron type
(strykejernskontakt), was readily available 20 years ago in
appliance shops (used for T9K39 'Main'). The second is female
adapter (skjöteledningskontakt) and has been a readily available
appliance, it is used on Na6a (for Kw.E.a), suppose it is
also used for E52 'Köln', too, the third is the usual 230V mains
male connector

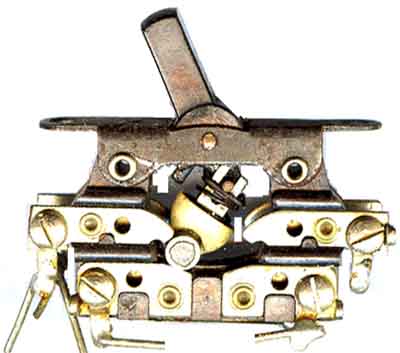

Typical DPDT-switch often used (Torn.E.b)

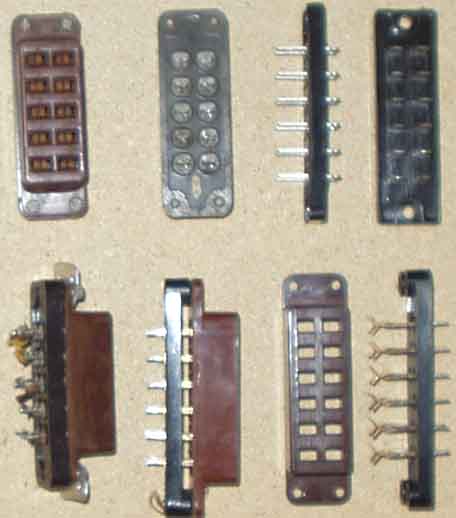

Luftwaffe connectors sometimes easy to
find reasonable priced at Weinheim UKW Tagung flea marked

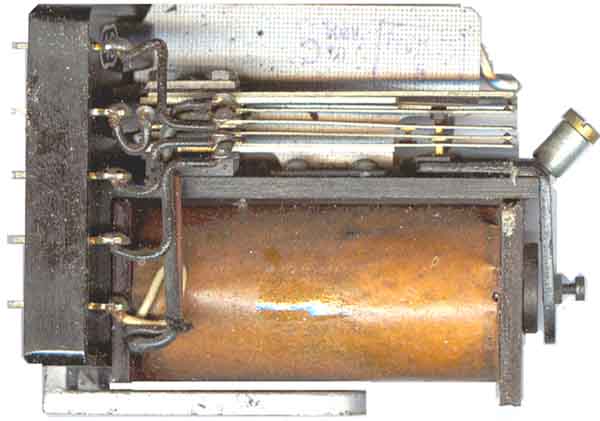

Torn.Fu.b1/Torn.Fu.c antenna relay
Torn.Fu.b1/Torn.Fu.c key relays

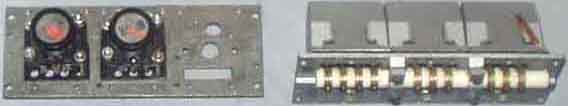

RF coils for MF, HF and VHF
Torn.E.b coil set
Lo6K39 coil set for one band

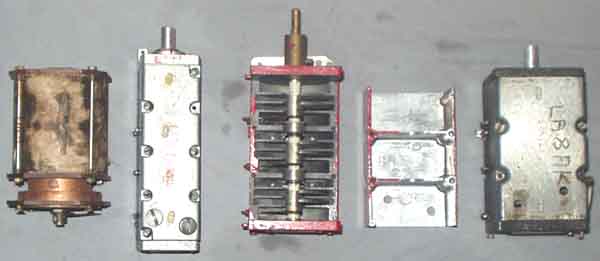

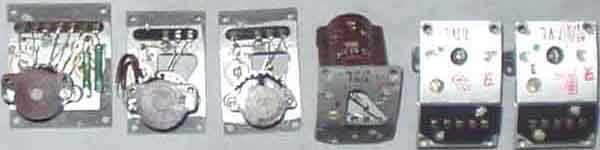

IF transformers and coils for
Torn.Fu.b1,
Kw.Ea/Fu.E.c (not the high-Q) etc
E10K/E10L
Ukw.E.e and Ukw.E.h
RFC's, audio chokes and a mike transformer
Torn.Fu.d2 cavity
FuG16 type tuning capacitors

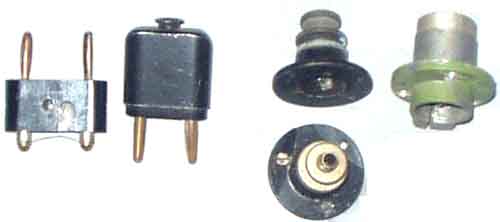

Headphone- and key-connectors
Antenna connector for Torn.Fu.b1, Torn.Fu.c, Kw.E.a, Lw.E.a,
Torn.E.b etc
Antenna connector for T9K39 Main

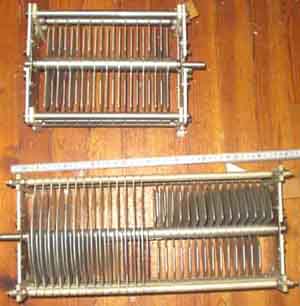

Sometimes you may find suitable capacitors, these are 50-245pF
and 2x 55-490pF 5000V,
but the largest type is almost 50cm long (Elektrisk Bureau)
Dezifix connector (Rohde&Schwartz) - may be used as male or
female, a smart connector,
somewhat large, but the problem is that it is already too many
different types around. Hasn't
usually been too difficult to convert to other types so far.

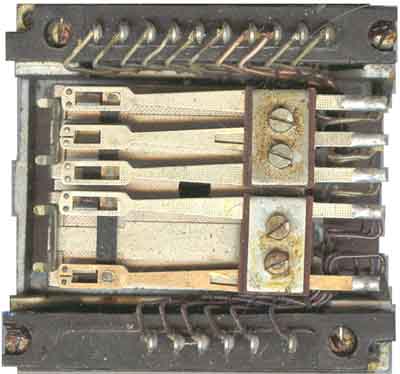

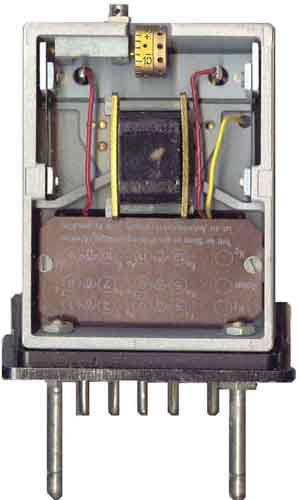

The picture shows different variants for German telegraph relays.
Trls43a was found in NTG2, but I haven't the faintest
idea where Trls44a has been used, found it at work amongst a lot
of old components, so it may have been used for
telecommunications
 |
 |

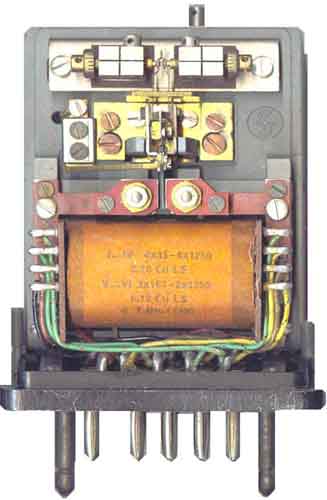

Trls 44a relay, obviously a 6-circuit current balance relay
 |
 |
Leuchtquarz = Light emitting crystal = Lys-emitterende
krystall
Disse finnes på endel
forskjellige frekvenser uten at en kan si eksakt hvilken frekvens
det enkelte sett har,
antakeligvis skyldes det relativt stor spredning i produksjonen,
noen frekvenser kan nevnes:
1800,7kHz (Torn.Fu.c), 4691,9 og 4687,5kHz (Torn.Fu.b1 og Torn.Fu.f) (markert de som er funnet i mitt utstyr)
 |
 |

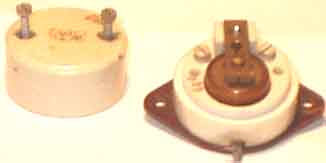

Some
"common" German xtals, they are
scarce, and usually found in calibrators
363kHz xtals used in Mw.E.c,
they looks like a low-profile EF11, they were found at
"dem Schrottmarkt" in Weinheim UKW Tagung for a
reasonable price few years ago
2004.11.14
