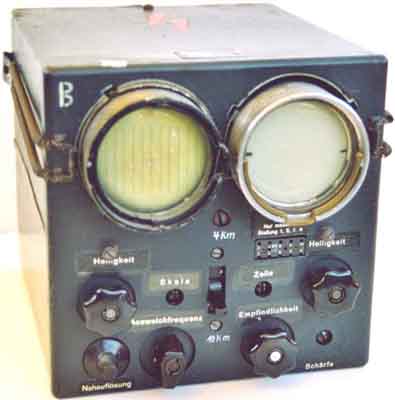

SG220: Sicht Gerat 220 for Lichtenstein SN2 (?) flyradar, høyre LB8 katodestrålerør er klippet bort,
men DL6VW Werner Gierlach hjalp til å finne et nytt rør og sokkel, mangler bare originale mu-metall skjermen.
Rekkevidde 4...10km (Har bare SG220 ikke SE).

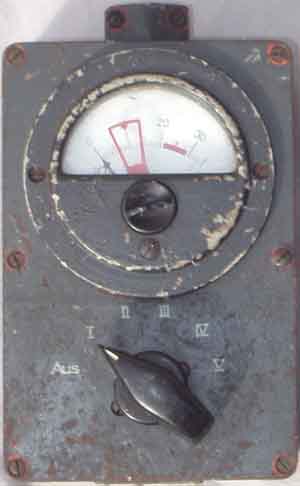

Prüfgerät PV62 für FuMO61(65) "Hohentwiel" (Kriegsmarine)
see: Die deutschen Funknachrichtenanlagen bis 1945, Band 2 [Fritz Trenkle] pp.223


EAG62, see http://www.agder.net/la8ak/12345/w25.htm





Wurzburg Riese (FuMO214) dish - still in use for laboration on 3GHz at sun observatorium
near
Kungsbacka in Sweden
Find out more about German radar stations and VHF navigational aid in this area (K.51.)
